Automatic O-ring Optical Sorting Machine

Types: Glass plate optical sorting machine
Suited for: O-rings, rubber products and similar parts
Inspection Accuracy: ±0.01mm

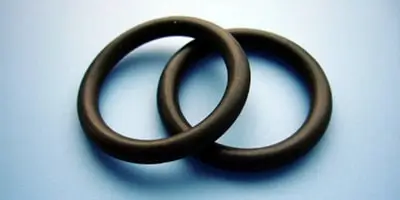

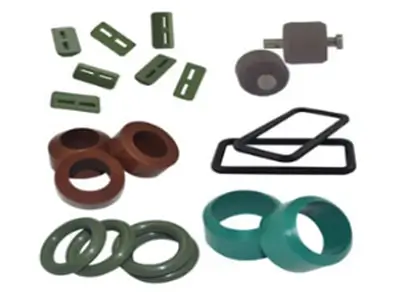

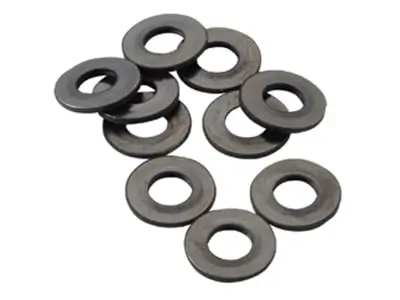

Inspecting Products

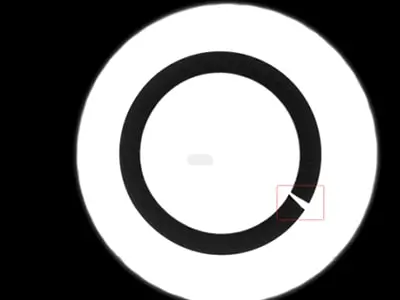

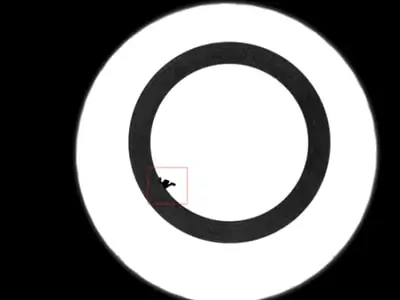

Inspection Screen

We refer to this inspection machine as the O-ring Optical Sorting Machine. It has two high-precision industrial CCD cameras. The CCD1 is a head-up camera used for inspecting the thickness of products.

The CCD2 is a vertical top-view camera. Technicians use it to inspect the inner diameter, outer diameter, and other essential features of each O-ring. Engineers add a CCD3 vertical top-view camera to inspect for appearance defects, such as burrs and missing material. This advanced multi-camera configuration ensures thorough, accurate, and reliable inspection of O-rings for dimensional conformity and surface quality.

Technology Parameters

Model: RK-1500
Head Outer Diameter (mm): 1-25
Head Thickness (mm): 1-15
Total Height (mm): 1-25
Inspection Accuracy: ±0.01mm
Air Pressure (Kg/cm²): 5
Host Computer: Industrial PC
Digital Camera: Industrial CCD
Net Weight (KGS): 650
Dimension (L*W*H) (mm): 1350*1100*1800

Customized service can be provided according to the detect demand.

Features

The high transparency of glass enables this machine to inspect all products that can be placed stably on the glass platform.
You can install 2 to 6 additional CCD cameras, based on the inspection parameters outlined in your checklist.
The inspection and sorting speed depends on the feeding system, with speeds ranging from 500 to 1200 pieces per minute.
You can add an automatic counting and packing machine, as well as an automatic feeder, according to your specific requirements.
Parts can be quickly and easily changed.

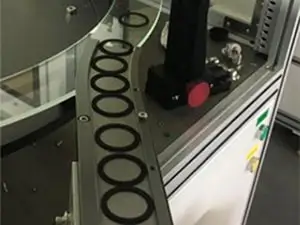

Strong Versatility

This machine can inspect various products. You only need to change the vibration plate or track. The prep work for checking a different type of product takes about 30 minutes. This time may vary based on the operator’s skill level.

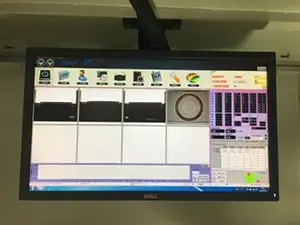

Inspection Software Supports Multiple Languages

Inspection software supports multiple languages, including Chinese, English, and Japanese (Some functions still use Chinese language).

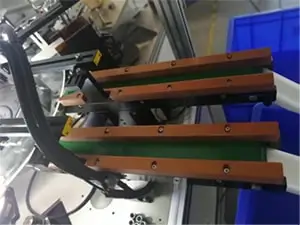

Conveyor Belt Blanking

Some products are difficult to move and tend to stick to surfaces. Because of this, a standard outlet may not work well for blanking these products. This machine utilises a conveyor belt to transfer products, ensuring effective blanking.

Optional Accessories

Frequently Asked Questions

1. What parts can be inspected using the vision sorting machine?

Our automated vision sorting machines can inspect a wide range of parts, including bolts, screws, and nuts. They are also capable of inspecting various brass parts, pins, and precision turned components with the help of machine vision technology for quality assurance and reliable results.

2. What is the speed of the vision sorting machine?

The type, size, and use of the parts being checked determine the speed of the optical sorting machine. Our vision sorting machines can perform between 300 and 1,200 inspections per minute, ensuring high efficiency in quality control.

3. What is the accuracy of the vision inspection machine?

The accuracy of the vision sorting machine varies depending on the characteristics of the part, such as size and colour. Our visual inspection systems can achieve a precision of up to 0.01 mm, providing highly reliable inspection results.
