Automatic Screw Optical Sorting Machine, Thread Inspection

Types: Glass plate optical sorting machine

Suited for: Screws, microscrews, plastic and rubber parts, electronic components and small parts

Inspection Accuracy: ±0.01mm

The inspection and sorting speed depends on the feeding system, with speeds ranging from 500 to 1200 pieces per minute.

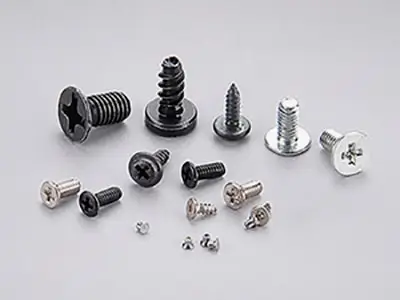

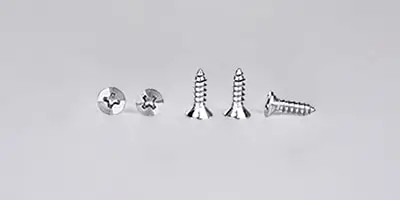

Inspecting Products

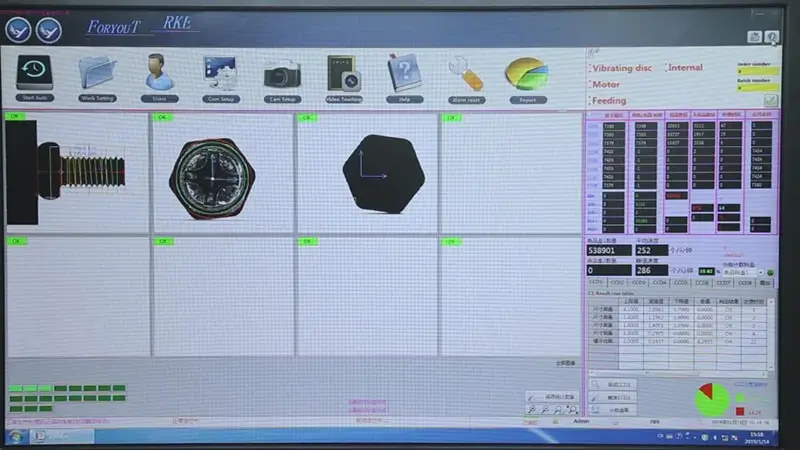

Inspection Screen

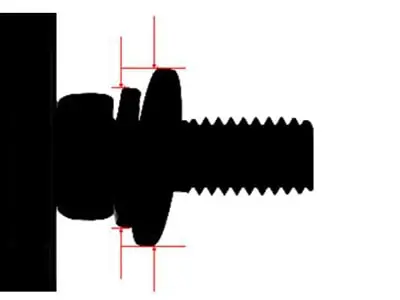

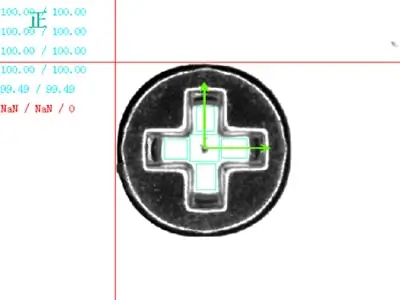

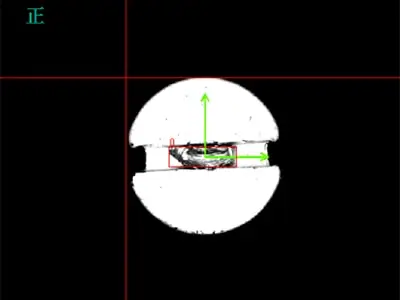

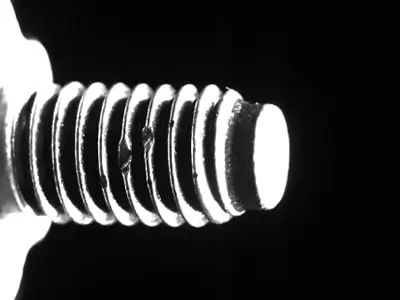

The optical sorting inspection screen comes equipped with three industrial CCD cameras. The CCD1 is a head-up camera used to inspect the multi-segment height and outer diameter of the products. The CCD2 is a vertical bottom-view camera used to examine the cross slot or flat slot on the head of the product. The Screw Optical Sorting Machine can be equipped with 1 to 4 CCD cameras. This helps detect thread damage and other defects.

These industrial CCD cameras provide a full 360-degree view of the product. This ensures accurate and efficient inspection of screws. They check for size, surface quality, and head slot integrity.

Technology Parameters

Model: RK-1500
Head Outer Diameter (mm): 1-25
Head Thickness (mm): 1-15
Total Height (mm): 1-25
Inspection Accuracy: ±0.01mm
Air Pressure (Kg/cm²): 5
Host Computer: Industrial PC
Digital Camera: Industrial CCD
Net Weight (KGS): 650
Dimension (L*W*H) (mm): 1350*1100*1800

Note: Customised service can be provided according to the detected demand.

Features

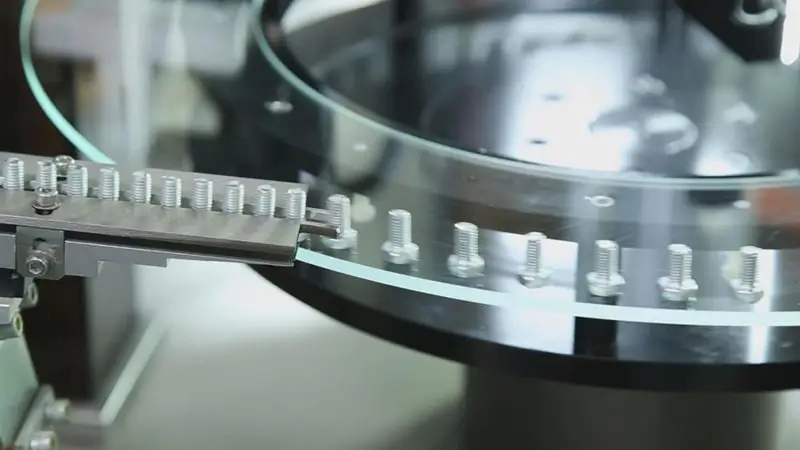

The high transparency of glass enables this machine to inspect all products that users can place stably on the glass platform.
You can install 2 to 6 additional CCD cameras, based on the inspection parameters outlined in your checklist.
The inspection and sorting speed depends on the feeding system, with speeds ranging from 500 to 1200 pieces per minute.
You can add an automatic counting and packing machine, as well as an automatic feeder, according to your specific requirements.
Technicians quickly change the parts, and users find them easy to operate.

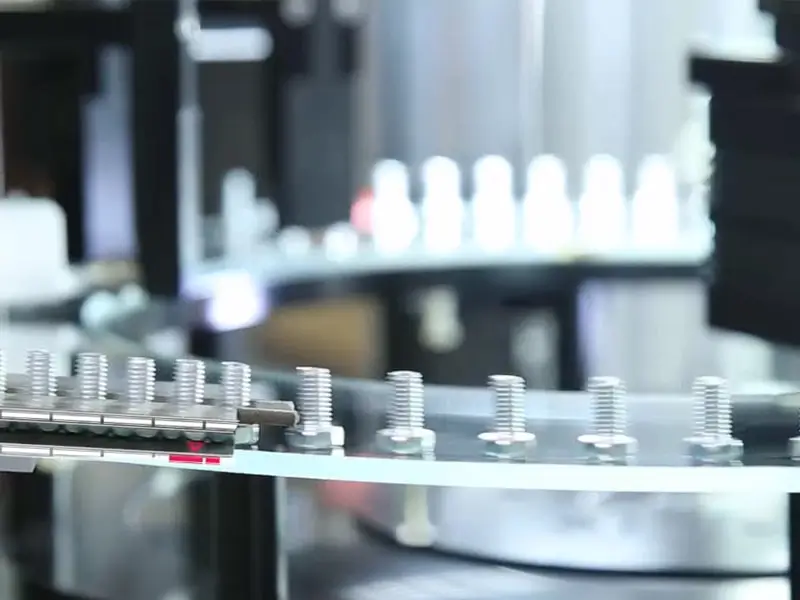

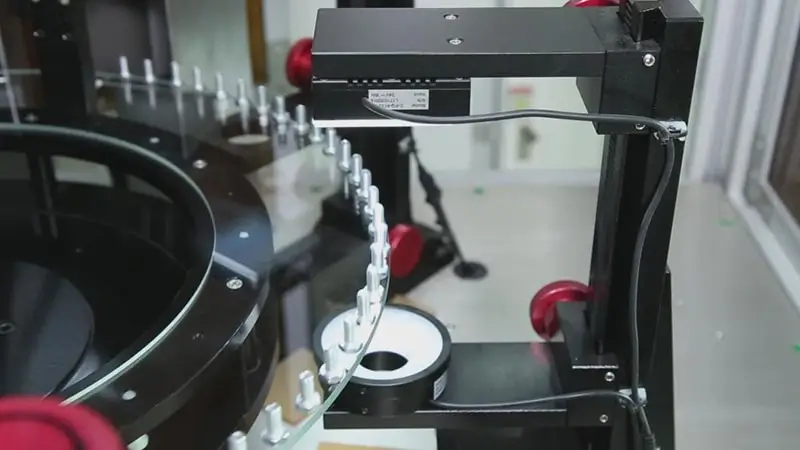

Internal Details of the Optical Glass Disc Sorter 4

Strong Versatility

This machine is highly adaptable. It can inspect different types of products by easily changing the vibration plate or track. Preparing to inspect a different product type takes approximately 30 minutes. This time may vary based on the operator’s skill level.

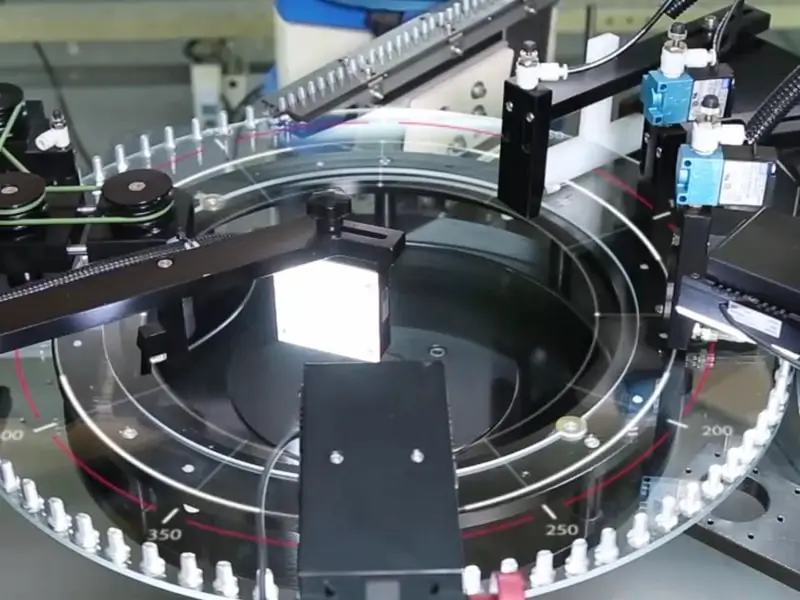

Internal Details of the Optical Glass Disc Sorter 2

Inspection Accuracy

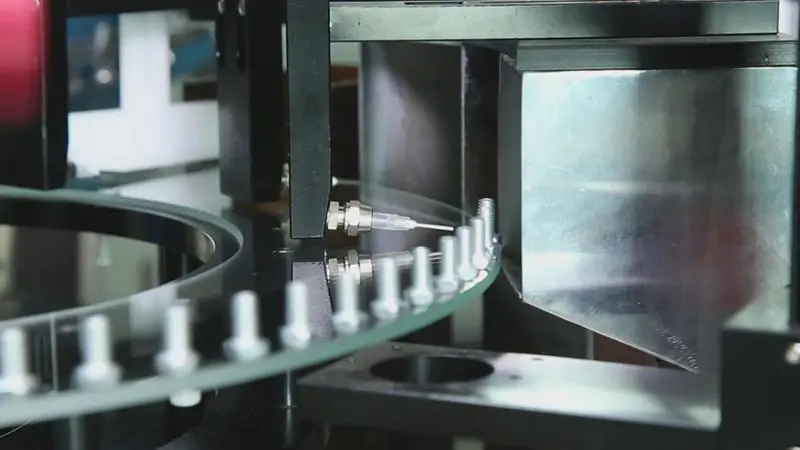

A vibration plate and track will deliver products to the glass inspection platform. The camera will detect and capture the products, and we will carefully adjust them to a fixed position. That ensures a high level of inspection accuracy.

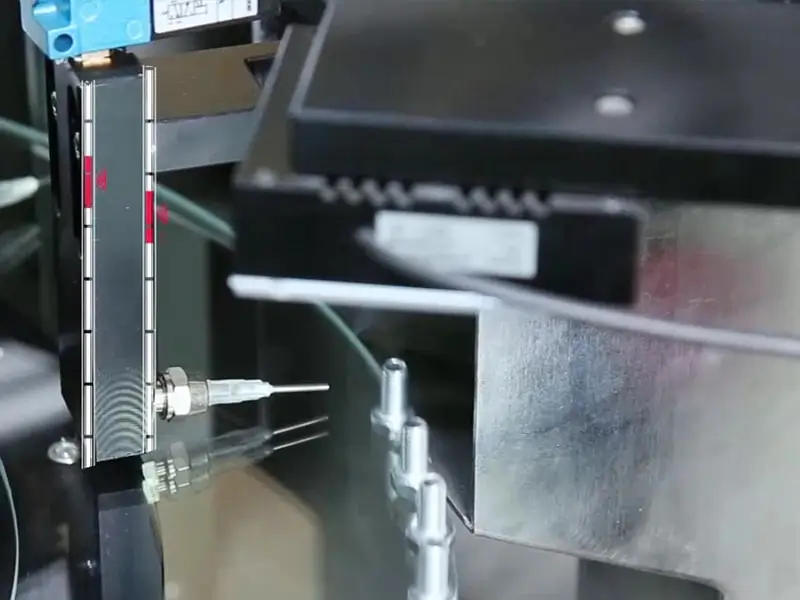

Internal Details of the Optical Glass Disc Sorter 6

Separate Outlet for OK or NG Products

This machine has separate OK, NG, and inspection outlets. We can classify the filtered product. If a product comes too close to another one, the system will eject it to the inspection outlet.

Optional Accessories

Frequently Asked Questions

1. What does RKE do?

RKE specializes in the production of vision sorting and inspection machines. Engineers design advanced machine vision systems to provide automated solutions for quality control and inspection. They include sorting and inspection technologies for different parts and components.

2. What is the accuracy of the vision inspection machine?

The accuracy of the vision sorting machine varies depending on the characteristics of the part, such as size and colour. Our visual inspection systems can achieve a precision of up to 0.01 mm, providing highly reliable inspection results.

3. Which parts can the vision sorting machine inspect?

Our automated vision sorting machines can inspect a wide range of parts, including bolts, screws, and nuts. They can also inspect various brass parts, pins, and precision-turn components. They use machine vision technology for quality assurance and reliable results.
