Automotive Parts Inspection and Testing

Types: Glass plate optical sorting machine
Suited for: Auto nuts, auto screws, tyre valves, oil seals and other auto parts
Inspection Accuracy: ±0.01mm

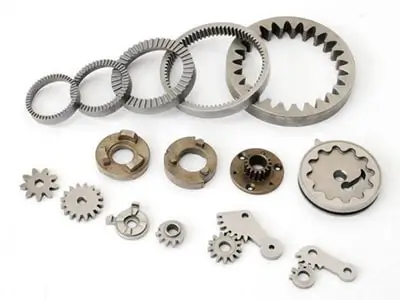

Inspecting Products

Inspection Screen

We can change and improve the 360-degree AI visual inspection machine. This allows us to meet the various inspection needs and accuracy levels of our clients. This flexibility enables users to tailor the inspection system to meet their specific quality control requirements.

This makes it useful for various industries, including electronics, automotive, and consumer goods. Particularly effective for Automotive Parts Inspection and Testing, this technology delivers accurate defect detection and consistent quality assurance for complex components.

Technology Parameters

Model: RK-1500
Head Outer Diameter (mm): 1-25
Head Thickness (mm): 1-15
Total Height (mm): 1-25
Inspection Accuracy: ±0.01mm
Air Pressure (Kg/cm²): 5
Host Computer: Industrial PC
Digital Camera: Industrial CCD
Net Weight (KGS): 650
Dimension (mm): 1350*1100*1800(LWH)

Customised service can be provided according to the detected demand.

Features

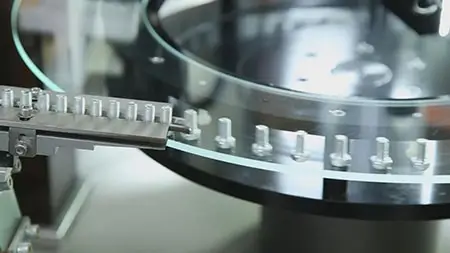

The high transparency of glass enables this machine to inspect all products that can be placed stably on the glass platform.
You can install 2 to 6 additional CCD cameras, based on the inspection parameters outlined in your checklist.
The inspection and sorting speed depends on the feeding system, with speeds ranging from 500 to 1200 pieces per minute.
You can add an automatic counting and packing machine, as well as an automatic feeder, according to your specific requirements. Parts can be quickly and easily changed.

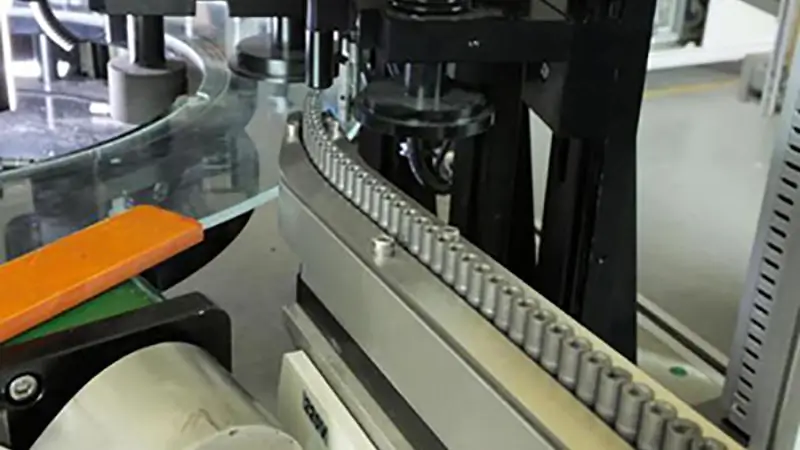

30min Inspection Line Changing Time

For inspecting products of similar size and type, this machine does not require the changing of accessories. Load the parameters using the software. To examine different kinds of products, changing accessories takes no more than 30 minutes. This time may vary based on the operator’s skill level.

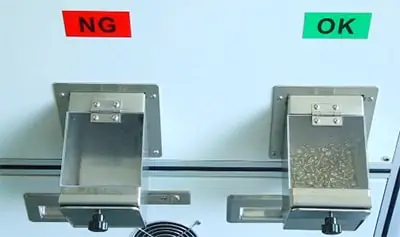

Miss-Sorting Prevention

Compressed air blanks both NG and OK products. Its design can prevent NG products from reaching the OK outlet, even in the event of a malfunction.

Easy-to-Use Software

The software enables the easy setting of various inspection parameters for different products. It allows you to create multiple accounts with varying levels of access. Password protection helps stop users from changing settings.

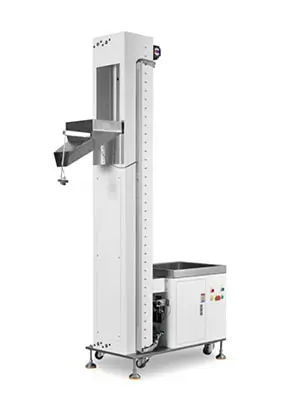

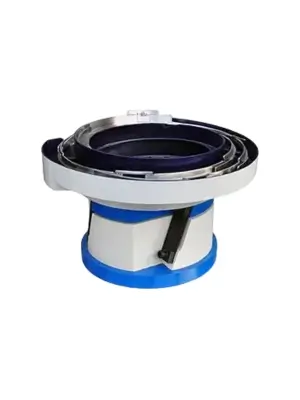

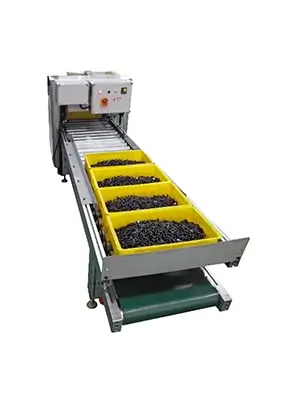

Optional Accessories

Frequently Asked Questions

1. Can we integrate this automatic inspection machine into an existing production line?

Yes, our automatic visual aborting and inspection machines can be integrated into existing production lines. They are designed to be adaptable. They offer customizable settings and interfaces to accommodate various production environments. This integration enables manufacturers to enhance their quality control processes without requiring a complete overhaul of their existing production setups.

2. What level of accuracy can a visual sorting machine achieve?

People recognise visual sorting machines for their high levels of accuracy, often exceeding 95%. The precision depends on factors like the part’s characteristics, the inspection criteria, and the machine’s technology. Advanced optical systems can detect minute defects, inconsistencies, and deviations, ensuring that only components that meet stringent quality standards receive approval.

3. What are the benefits of using visual inspection machines for washers and nuts?

Using visual inspection machines for washers and nuts ensures uniformity and consistent quality in production. These machines can quickly find defects.
They look for surface cracks, size changes, and wrong shapes. These issues are critical in components such as washers and nuts. By automating the inspection process, manufacturers can reduce manual labour, improve product reliability, reduce wastage, and enhance production efficiency.
