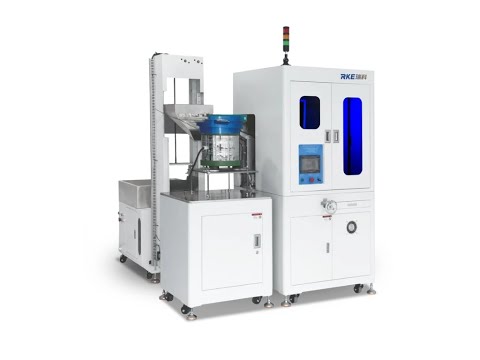

Eddy Current Optical Sorting Machine

Fasteners

Optical inspection machine with Eddy current system for inspecting hardness and separating non-ferrous metals. The Eddy Current Optical Sorting Machine uses a fixed device and contact pressing for precise imaging. The built-in eddy current probe detects heat treatment defects. It also separates non-ferrous metal parts to ensure the best quality control.

Specifications

Head Outer Diameter (mm): 5-20
Head Thickness (mm): 2-10
Total Height (mm): 5-80
Inspection Accuracy (mm): ±0.02
Air Pressure (Kg/cm²): 5
Host Computer: Industrial PC
Digital Camera: Industrial CCD
Net Weight (KGS): 650
Dimension (L*W*H)(mm): 1500*1100*1800

Customized service can be provided according to the detect demand.

Description

The Eddy Current Optical Sorting Machine has a fixed device. This device prevents product movement that typically occurs with rotary indexing tables.

Each workstation has a contact-type pressing mechanism. This keeps items securely in place.

The head-up camera can then capture clear, high-resolution images. This setup allows for accurate inspection.
The system has a special outlet for the heat treatment of defective products. This keeps them separate from dimensionally faulty items. It also enhances the inspection process by eliminating unnecessary checks for heat treatment failures.

An integrated eddy current probe helps detect and sort products based on their heat treatment status. This supports strict quality standards in industrial settings.

Applicable Parts

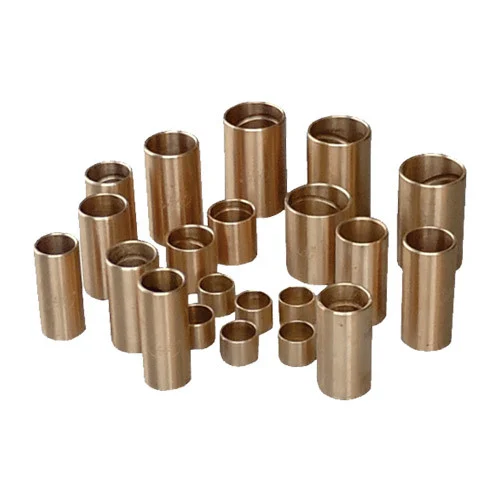

non-ferrous metals casting

Applications

Features

You can customise this machine, starting with a standard or large base type.
It can inspect products that cannot stand on their own but can stay suspended in place, such as screws and rivet nuts.
The design inspects screws with standard designs. It can inspect products with lengths ranging from 5 to 80mm.
The machine can be equipped with an eddy current probe. This probe checks the products for heat treatment, poor heat treatment, and size.

Frequently Asked Questions

Which parts can the vision sorting machine inspect?

They inspect brass parts and pins using machine vision technology for quality assurance and consistent results.

What is the speed of the vision sorting machine?

The type, size, and use of the parts that the optical sorting machine checks determine its speed. Our vision sorting machines can perform between 300 to 1,200 inspections per minute, ensuring high efficiency in quality control.

What is the accuracy of the vision inspection machine?

The accuracy of the vision sorting machine varies depending on the characteristics of the part, such as size and colour. Our visual inspection systems can achieve a precision of up to 0.01 mm, providing highly reliable inspection results.
