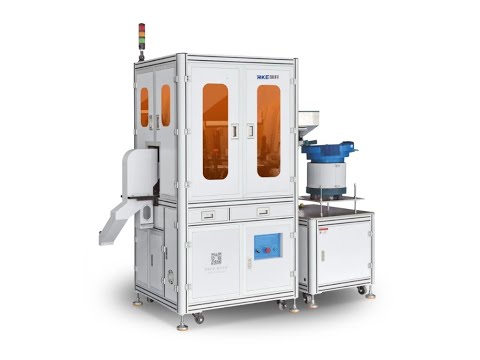

Headed Fastener Optical Sorting Machine

Electronics, Fasteners

Optical inspection machine for inspection and sorting of headed fasteners. The Headed Fastener Optical Sorting Machine uses image recognition and a steel wire system. This machine provides precise, automated quality control. It ensures that each fastener receives correct evaluation and efficient sorting.

Specifications

Applicable item size: 5-40mm
Sorting precision: ±0.01mm
Inspection speed: 600-1200pcs/min
Air pressure: 7 kg/cm²
Voltage: 220V
Rated power: 3000W

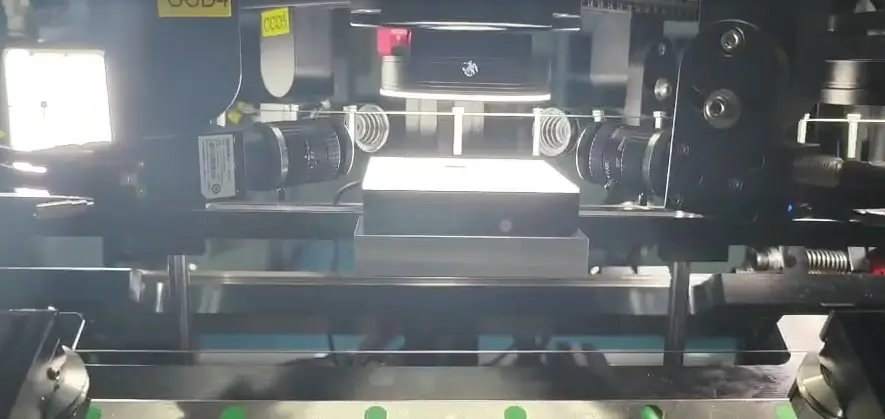

Digital camera: industrial camera
Machine weight: 650kg
Machine dimensions (L×W×H): 1350×1100×1800mm

Description

People also refer to the Headed Fastener Optical Sorting Machine as a screw sorting machine. It uses advanced image recognition technology. This technology utilises a steel wire system for automatically sorting fasteners.

Explicitly designed for components that require suspended inspection, this optical inspection machine ensures rapid product alignment and comprehensive evaluation of quality, dimensions, and defects. Automating sorting processes reduces manual work. It improves inspection accuracy and increases production efficiency. This makes it perfect for industries that need strict quality control.

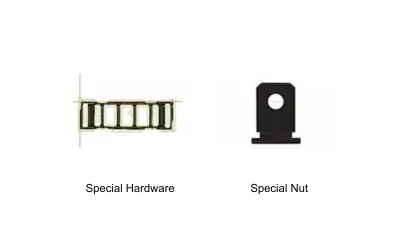

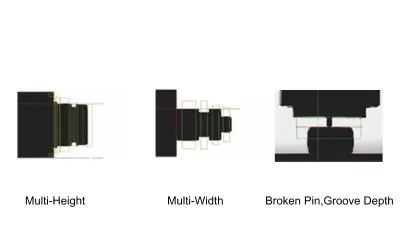

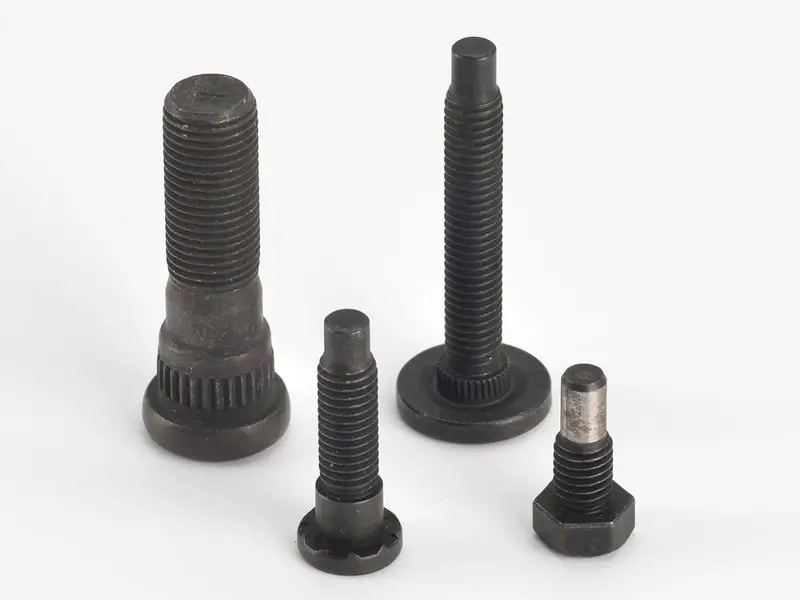

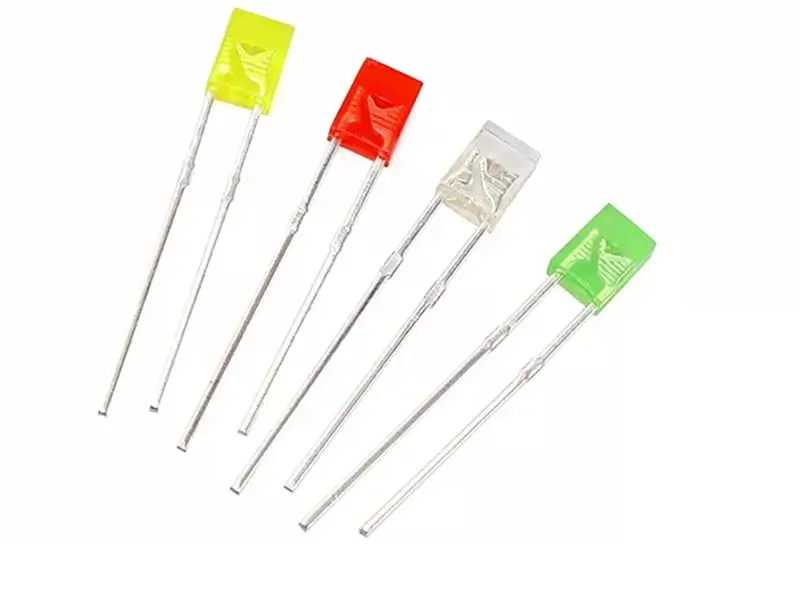

Applicable Parts

Applications

Features

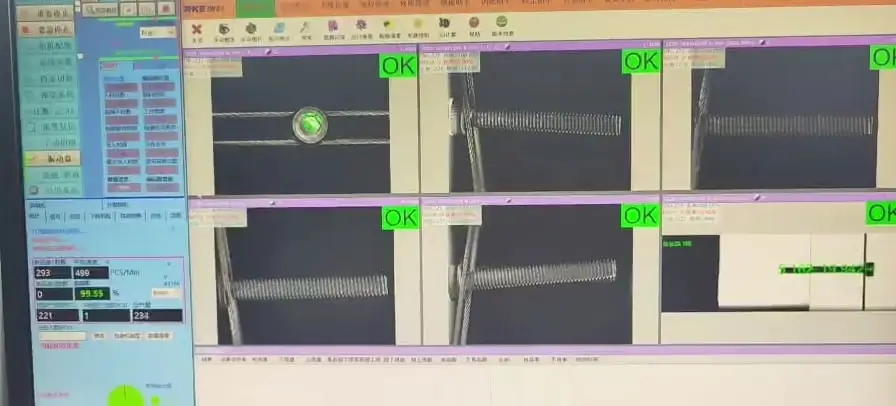

Capable of full-range inspection of both the appearance and dimensions of workpieces, ensuring thorough quality control.
Operates at high speed, inspecting 600 to 1200 pieces per minute, which significantly enhances productivity.

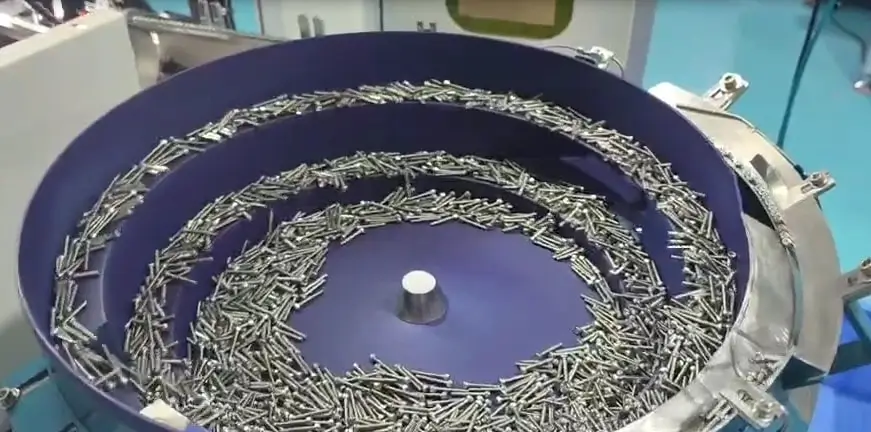

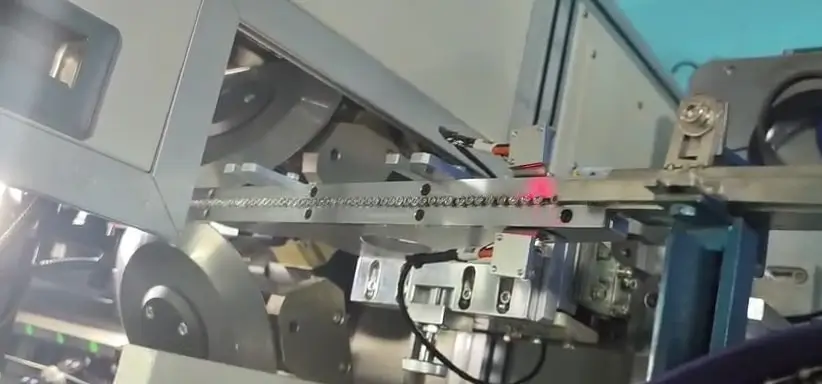

Switching between different product types is simple, requiring only adjustments to the width of the steel wire track. The design of the vibration bowl makes it easy to use and adaptable. This makes it user-friendly and efficient.

Frequently Asked Questions

What does RKE do?

RKE specialises in the production of vision sorting and inspection machines. Engineers design advanced machine vision systems to provide automated solutions for quality control and inspection. They include sorting and inspection technologies for different parts and components.

Which parts can the vision sorting machine inspect?

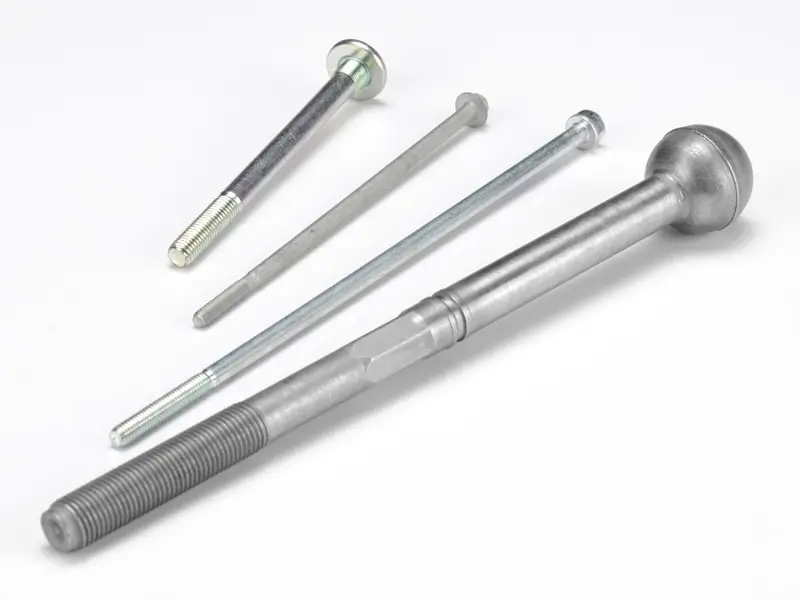

Our automated vision sorting machines can inspect a wide range of parts, including bolts, screws, and nuts. They can also examine various brass parts, pins, and precision-turn components. They use machine vision technology for quality assurance and reliable results.

What is the speed of the vision sorting machine?

The type, size, and use of the parts being checked determine the speed of the optical sorting machine. Our vision sorting machines can perform between 300 and 1,200 inspections per minute, ensuring high efficiency in quality control.
