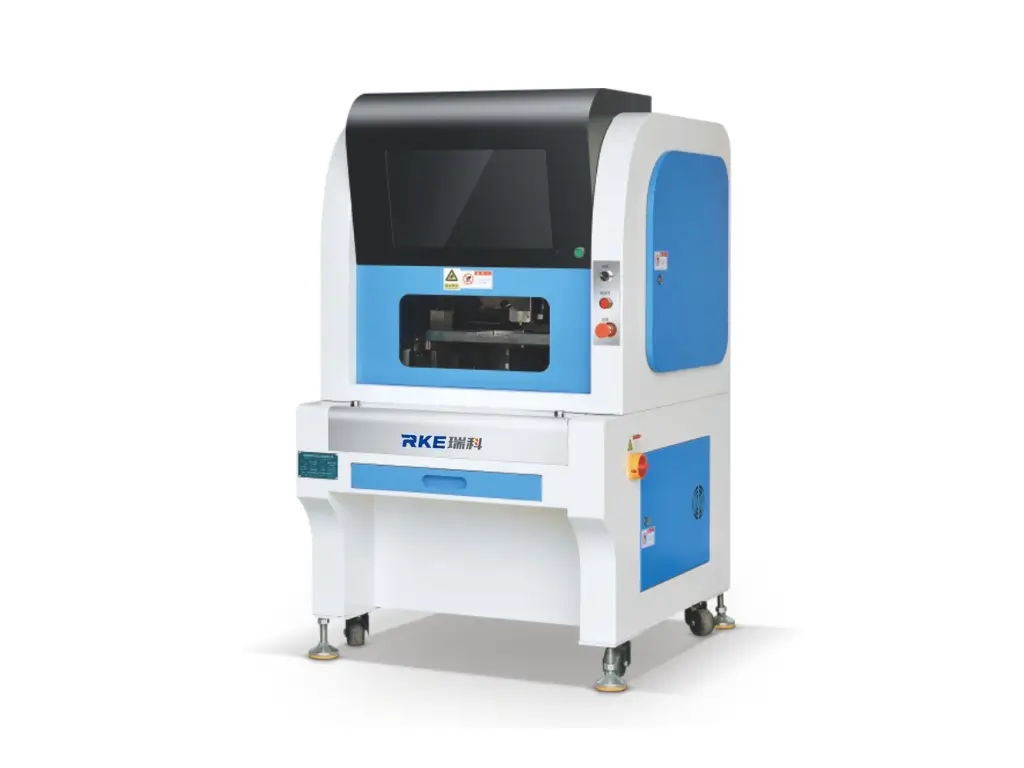

Laser Inspection Equipment

Q: What types of products can RKE laser inspection equipment measure?

Perfect for measuring all sizes of square lithium batteries. It also works well for items that are shiny, clear, or mirror-like.

Q: How does laser inspection improve quality control compared to manual inspection?

The equipment offers high accuracy in measurements and quick inspection speeds. It removes surface scratches and marks that often occur with manual inspection methods.

Q: What inspection principles does the system use?

RKE laser inspection equipment uses advanced laser technology. It scans shapes, measures 3D sizes, and finds shape defects. The equipment sorts products by checking height differences, hole depths, and cap heights.

Automotive Accessories, Mobile Phone Parts

RKE laser inspection equipment delivers high measurement accuracy and fast inspection speeds, eliminating scratches and marks that can occur during manual inspection. Ideal for full-dimension precision measurement of square lithium battery products.

The system uses advanced laser technology. It finds shape defects and measures 3D dimensions. It scans all six surfaces, including those on black, shiny, reflective, or mirror-like materials.

Proprietary software collects and analyses 3D data. It quickly finds height differences, hole depths, and cap heights. This enables rapid inspection and automated sorting of lithium batteries.

Specifications

CCD Module: 3D Laser
Lens and Structure: High-Definition Lens
Inspection Items: Sorting lithium battery materials, checking dimensions, measuring height differences, step heights, hole depths, and cap heights. Also, checking contour and compression damage depth.
Software System: AI Vision Software System
Laser Installation Options: Single Laser, Dual Laser, Point Laser
Image Clarity: MAX 20μm
Inspection Speed: 30-120PCS/min
Inspection Accuracy: ±0.01mm
Inspection Effectiveness: False Negative Rate <0%, False Positive Rate <3%
Equipment Dimensions (L*W*H): 1050mm*950mm*1850mm (Customizable per client requirements)
Equipment Weight: 580KG
Voltage: 220V
Air Pressure: 0.5-0.8MPa

Description

RKE laser inspection equipment offers high measurement accuracy and fast inspection speed, while eliminating scratches and marks commonly associated with manual inspection methods. Widely applicable for full-dimension precision measurement of various square lithium battery products.

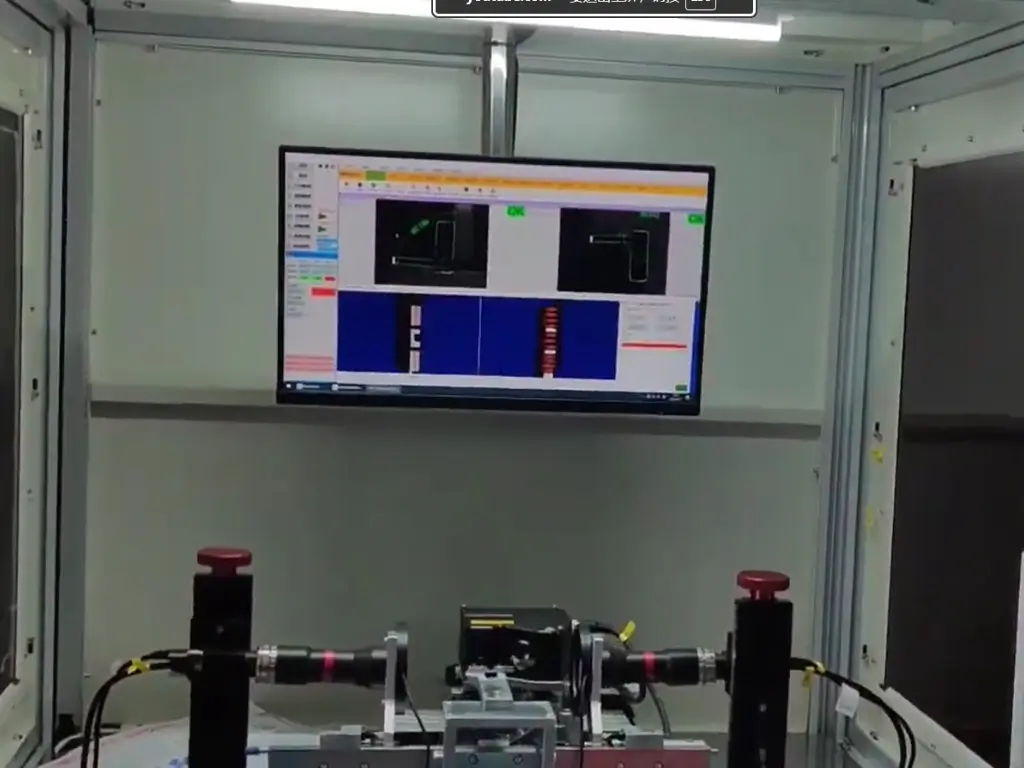

Inspection Principle: This system finds product shape defects and measures 3D dimensions. It works well on low-reflective black items, shiny metal objects, clear items, and mirror-like surfaces. This system utilises advanced laser testing technology, employing a laser source for precise height measurement.

By detecting relative displacement between the battery and laser, it scans the contours of all six battery surfaces. Proprietary testing and analysis software collect 3D data. It calculates height differences, hole depths, and cap heights. This enables quick inspection and automatic sorting of various lithium battery products.

Applicable Parts

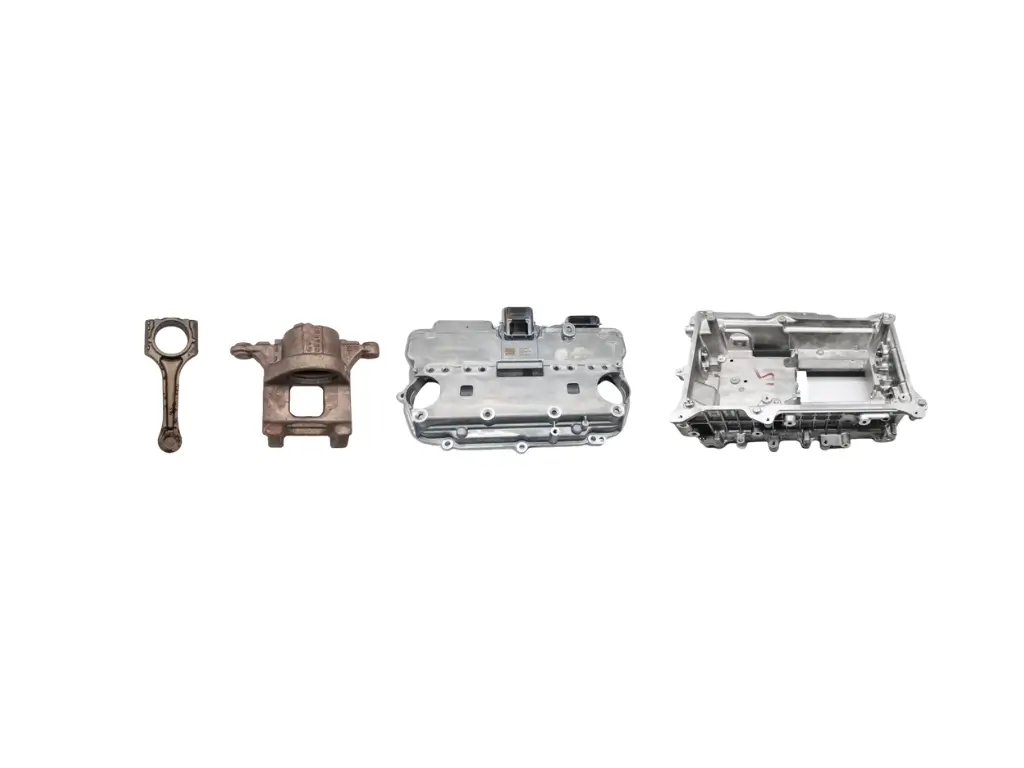

Automotive Parts

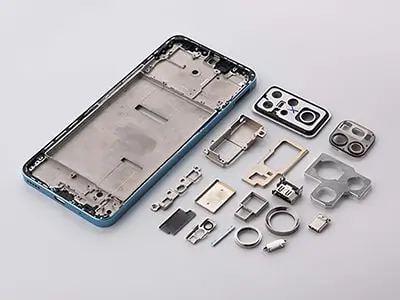

Mobile phone parts

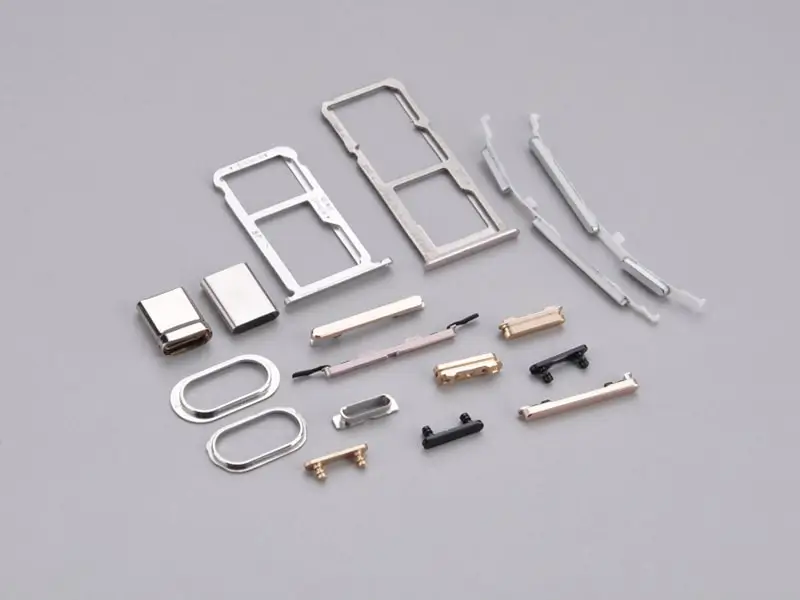

Metal stamped parts

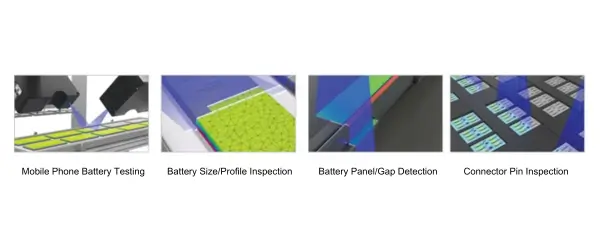

Applications

Features

High measurement accuracy with micrometre-level precision.
Fast inspection speed, supporting high-volume and rapid production.
Non-contact laser measurement eliminates scratches and marks that occur during manual inspection.
Capable of full-dimension 3D scanning and measurement of all six surfaces.
Detects shape defects, height differences, hole depths, and cap heights.
Works effectively on low-reflective black, shiny, transparent, and mirror-like items.
Proprietary testing and analysis software for comprehensive 3D data collection and analysis.
Enables quick inspection, automatic sorting, and reliable quality control for lithium battery products.
