Ideal for O-ring components, seals, or similar parts requiring precision inspection of both sides. This solution ensures consistent orientation and dimensional accuracy, making it perfect for quality assurance in mass-production environments.

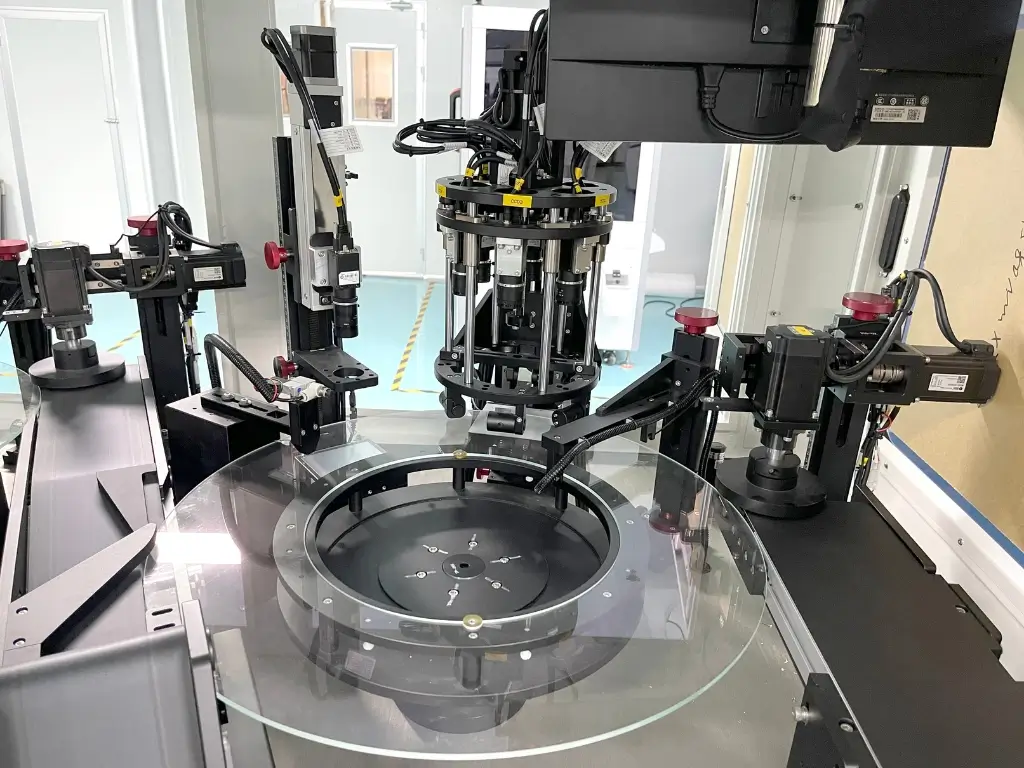

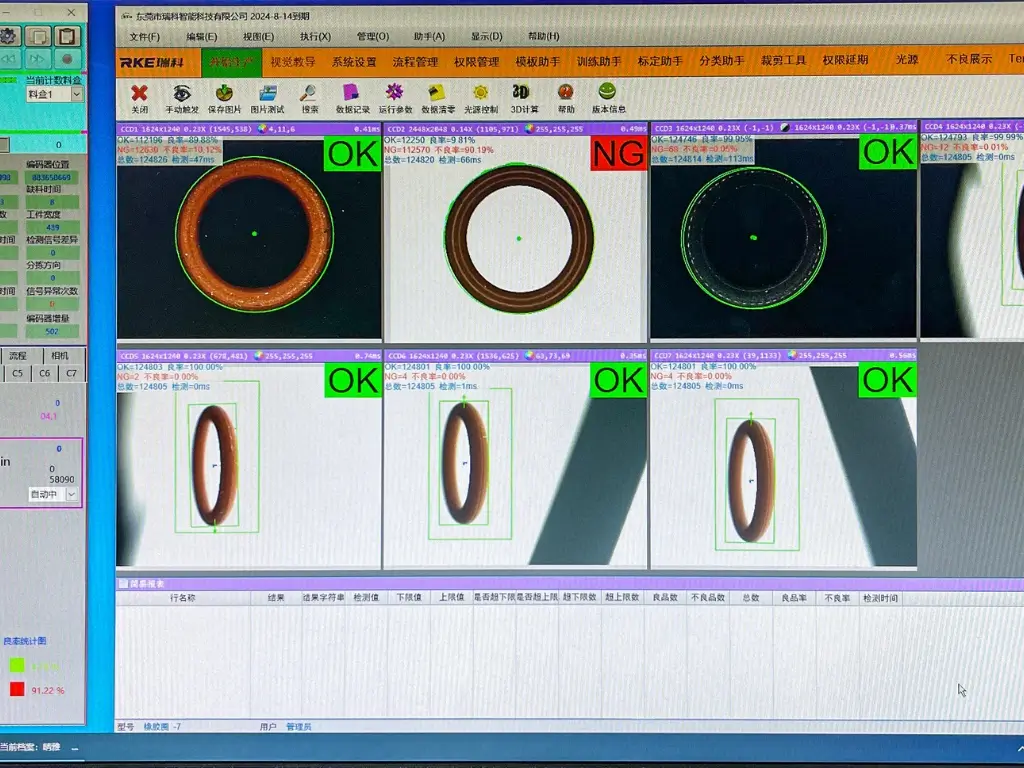

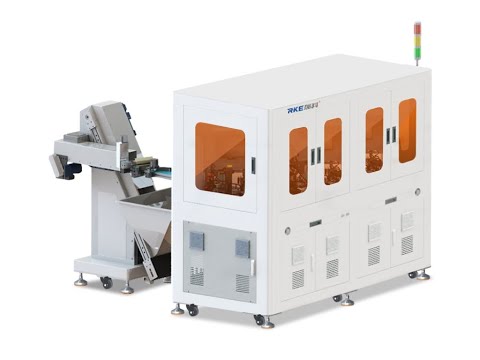

A team designed a fast, O Ring Automated Inspection Machine for O-ring parts. It checks both the inner and outer surfaces from all angles. The automated inspection system integrates orientation correction, defect detection, and rejection capabilities to maintain strict quality control in high-volume production lines.
1. Dual-Side Inspection
First Pass: Inspects front face (inner/outer surfaces) with 360° coverage using an automatic flipping mechanism.
Second Pass: Inspects the reverse side (inner/outer surfaces) after flipping.
2. Orientation Validation & Rejection
Automatically detects and removes parts with incorrect orientation (e.g., flipped sides) to prevent assembly errors.
3. Modular Camera Configuration

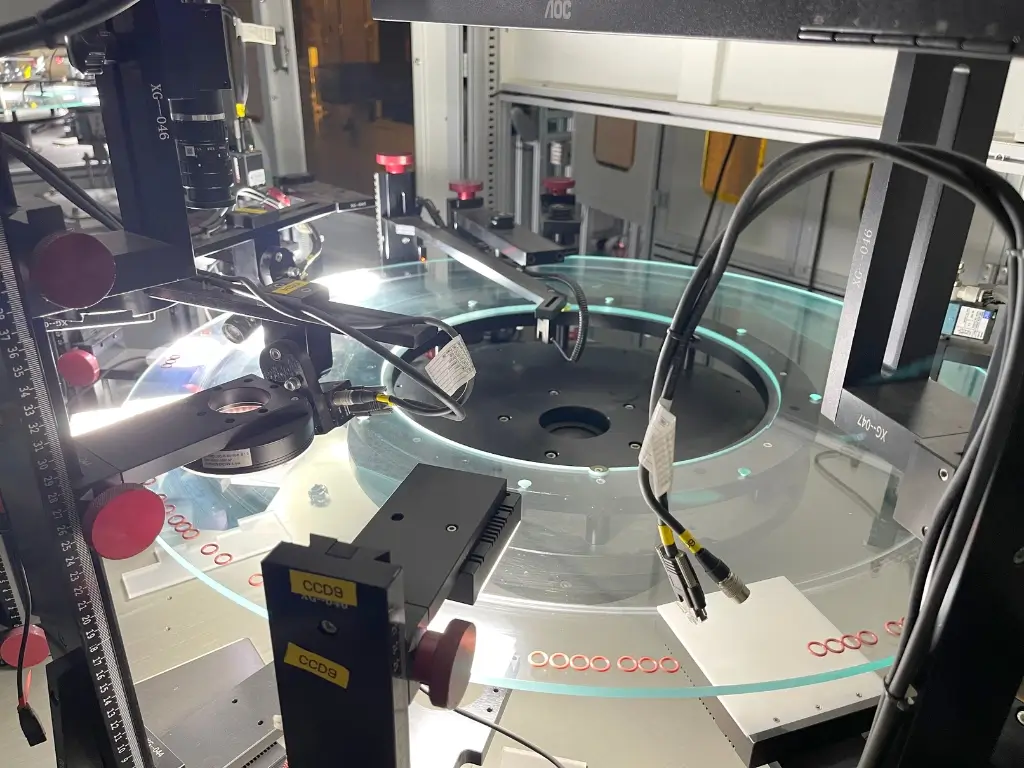

Supports 10–25 industrial cameras for customised testing requirements (e.g., surface defects, dimensional assessment).
4. High-Speed Performance
Operates at 100–300 pieces per minute (pcs/min), suitable for large-scale production demands.

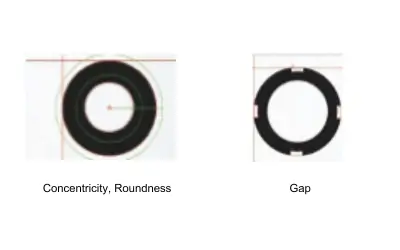

It ensures the precision inspection of both sides of O-rings and similar components, delivering accurate dimensional measurements and consistent orientation for mass-production environments.

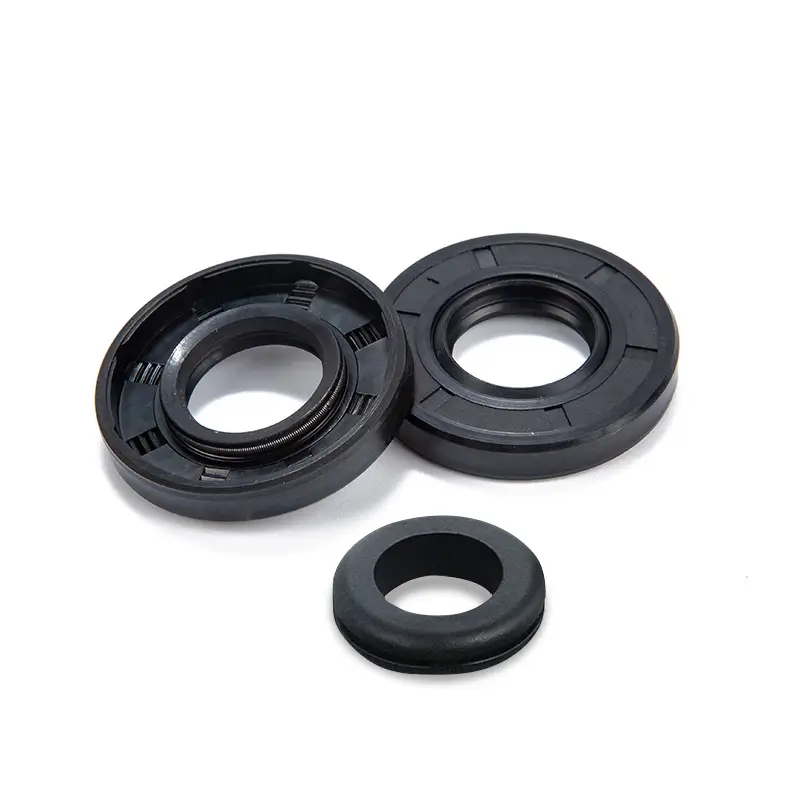

Yes, the O-Ring Automatic Inspection Machine can handle a wide range of O-ring parts, seals, and similar products. It offers flexible inspection options.
By automating checks for orientation and size, the machine reduces manual work. It speeds up quality assurance and ensures reliable sorting and defect detection in high-volume manufacturing.
